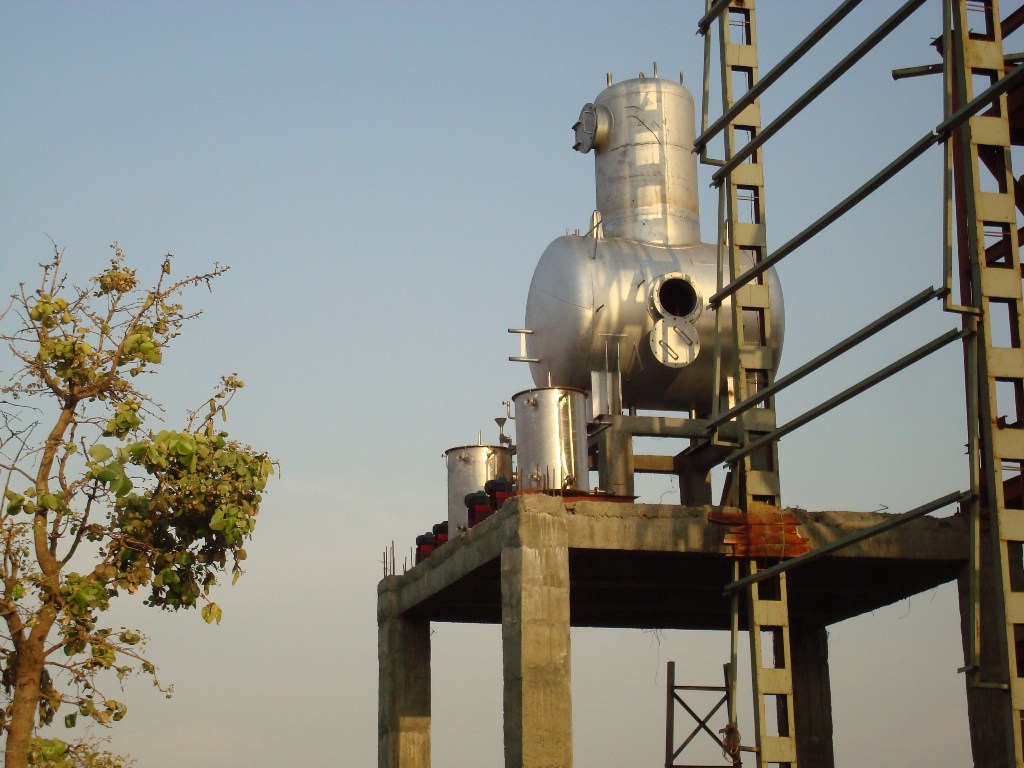

DEAERATOR
A Deaerator is a vital component in boiler feedwater systems, designed to remove dissolved gases—primarily oxygen (O₂) and carbon dioxide (CO₂)—from feedwater before it enters the boiler. These gases, if not removed, can cause severe corrosion to boiler tubes, feed lines, and economizers. PP Boilers offers high-performance tray-type and spray-type deaerators engineered to improve feedwater quality, reduce maintenance costs, and extend boiler life.
Compliance
IBR-certified and ISO 9001:2015 compliant
Pressure Parts
Operating pressure up to 120 kg/cm²
Fans (FD, ID, PA)
Flow rates up to 500,000 m³/hr
Temperature
Up to 540°C (for superheater coils)
Key Points
- Oxygen & CO₂ Removal: Strips out corrosive gases to prevent pitting and scaling inside the boiler
- Thermal Conditioning: Heats feedwater upto 150°C, improving boiler efficiency
- Storage & Surge Control: Acts as a reservoir to stabilize feedwater supply to the boiler, especially during load fluctuations
Technical Specifications
- Type: Tray-type or Spray-type (or hybrid designs)
- Capacity Range: 1 to 200 TPH
- Operating Pressure: Up to 05 kg/cm²(g)
- Deaeration Efficiency: Removes dissolved oxygen to <0.005 ppm (5 ppb)
- Feedwater Temperature: Typically raised to 105–150°C using steam
- Materials of Construction: Carbon steel, stainless steel (for internal parts).
- Compliance: ASME Section VIII, IBR, and ISO standards
Silent Features
- High Deaeration Efficiency: Meets or exceeds 5 ppb oxygen level for corrosion-free boiler operation
- Thermal Performance: Utilizes low-pressure steam for preheating and gas stripping
- Modular Design: Skid-mounted or site-fabricated options for ease of integration
- Spray & Tray Mechanisms: Combined action enhances gas-liquid contact surface area
- Condensate Recovery Compatible: Accepts cold or hot return condensate without thermal shock
- Integrated Level & Pressure Controls: Ensures consistent performance during varying load conditions
- Corrosion-Resistant Internals: Stainless steel trays and nozzles for long-term reliability
- Vent Management: Controlled venting ensures minimal steam loss and environmental compliance
Applications
Essential in steam-generating plants such as:
- Thermal power stations
- Distilleries
- Chemical plants
- Pulp & paper mills
- Textile and food processing units
